TZ-1826 TRAPZILLA GREASE INTERCEPTOR
TZ-1826-SSA TRAPZILLA99 GREASE INTERCEPTOR
Comes with a support stand for above-ground installations
The TZ-1826-SSA Above-Ground Trapzilla99 Grease Interceptor is ASME/PDI rated for 100 GPM (6.31 l/s) and holds more than 1,826 pounds (248 Gallons) of grease in a 274-Gallon footprint. Unlike traditional interceptor designs, the TZ-1826-SSA is capable of holding more than 90% of its internal volume in grease and solids before it begins to lose efficiency. Perfect for replacing failing steel or concrete, the TZ-1826-SSA is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The above-ground model comes with the SSA-1826 Support Stand, an 18" (457mm) long single-piece extension collar and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease, and an external support frame.
Aqua Mundus Trapzilla99 Model No. TZ-1826-SSA, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be PDI-G 101 and ASME A112.14.3-rated at 100 GPM (6.31 l/s), 1826 pounds (828 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, two fully removable covers for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes a dual extension collar assembly, linear low-density rotationally molded polyethylene for field adjustability to optimal installation depth and support stand manufactured out of linear low-density rotationally molded polyethylene for above-ground installations.

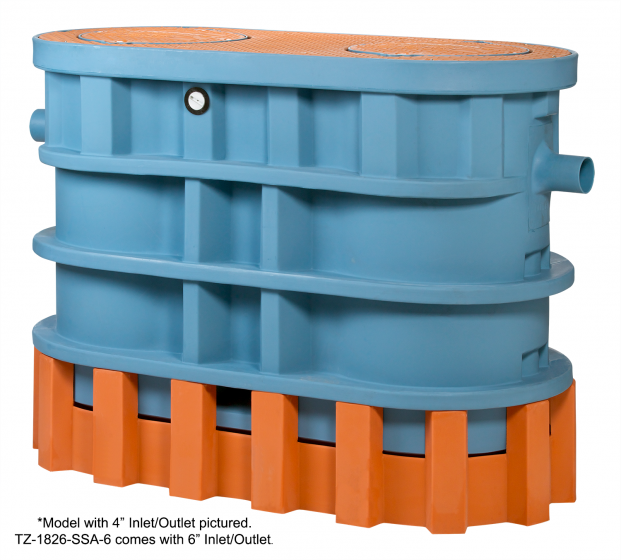

TZ-1826-SSA-6 TRAPZILLA99 GREASE INTERCEPTOR WITH 6" (152mm) INLET/OUTLET
Comes with a support stand for above-ground installations
The TZ-1826-SSA-6 with 6" Inlet/Outlet Above-Ground Trapzilla99 Grease Interceptor is ASME/PDI rated for 100 GPM (6.31 l/s) and holds more than 1,826 pounds (248 Gallons) of grease in a 274-Gallon footprint. Unlike traditional interceptor designs, the TZ-1826-SSA-6 is capable of holding more than 90% of its internal volume in grease and solids before it begins to lose efficiency. Perfect for replacing failing steel or concrete, the TZ-1826-SSA-6 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The above-ground model comes with the SSA-1826 Support Stand, an 18" (457mm) long single-piece extension collar and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease, and an external support frame.
Aqua Mundus Trapzilla99 Model No. TZ-1826-SSA-6 with 6" Inlet/Outlet, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be PDI-G 101 and ASME A112.14.3-rated at 100 GPM (6.31 l/s), 1826 pounds (828 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, two fully removable covers for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes a dual extension collar assembly, linear low-density rotationally molded polyethylene for field adjustability to optimal installation depth and support stand manufactured out of linear low-density rotationally molded polyethylene for above-ground installations.

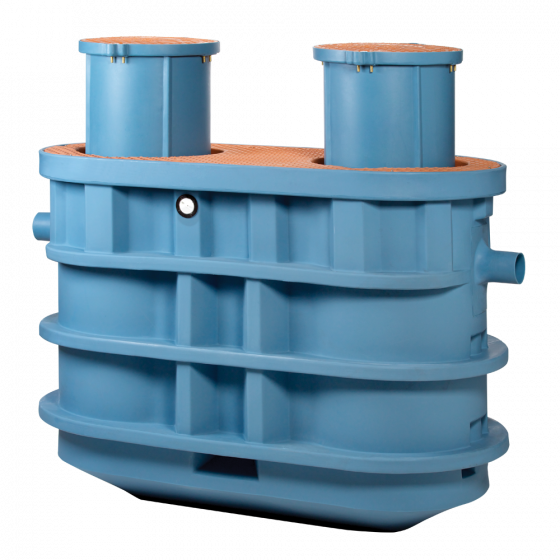

TZ-1826-ECA TRAPZILLA99 GREASE INTERCEPTOR
For in ground installation, up to 18" deep (457mm)
The TZ-1826-ECA In-Ground Trapzilla99 Grease Interceptor is ASME/PDI rated for 100 GPM (6.31 l/s) and holds more than 1,826 pounds (248 Gallons) of grease in a 274-Gallon footprint. Unlike traditional interceptor designs, the TZ-1826-ECA is capable of holding more than 90% of its internal volume in grease and solids before it begins to lose efficiency. Perfect for replacing failing steel or concrete, the TZ-1826-ECA is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The in-ground model comes with an 18" (457mm) long single-piece extension collar and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease.
Aqua Mundus Trapzilla99 Model No. TZ-1826-ECA, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be PDI-G 101 and ASME A112.14.3-rated at 100 GPM (6.31 l/s), 1826 pounds (828 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, two fully removable covers for grease and solids removal, integral non- floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes dual-entry extension collar assembly, linear low-density rotationally molded polyethylene for field adjust- ability to optimal installation depth.

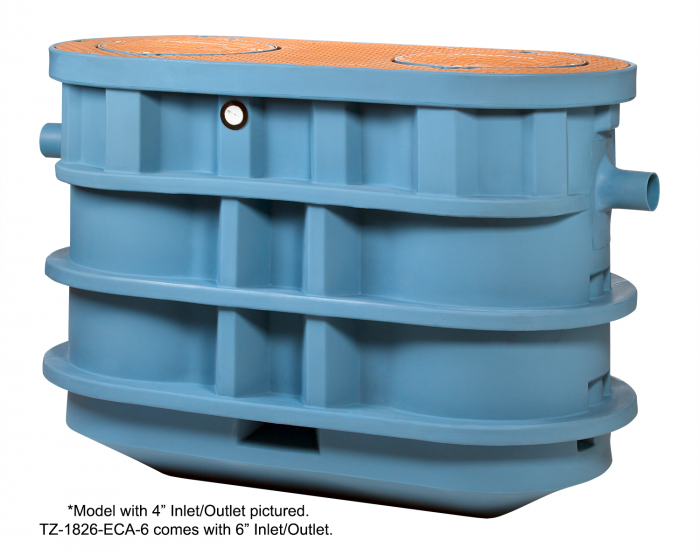

TZ-1826-ECA-6 TRAPZILLA99 GREASE INTERCEPTOR WITH 6" (152mm) INLET/OUTLET
For in ground installation, up to 18" deep (457mm)
The TZ-1826-ECA-6 In-Ground Trapzilla99 Grease Interceptor is ASME/PDI rated for 100 GPM (6.31 l/s) and holds more than 1,826 pounds (248 Gallons) of grease in a 274-Gallon footprint. Unlike traditional interceptor designs, the TZ-1826-ECA-6 is capable of holding more than 90% of its internal volume in grease and solids before it begins to lose efficiency. Perfect for replacing failing steel or concrete, the TZ-1826-ECA-6 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The in-ground model comes with an 18" (457mm) long single-piece extension collar and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease.
Aqua Mundus Trapzilla99 Model No. TZ-1826-ECA-6, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be PDI-G 101 and ASME A112.14.3-rated at 100 GPM (6.31 l/s), 1826 pounds (828 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, two fully removable covers for grease and solids removal, integral non- floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes dual-entry extension collar assembly, linear low-density rotationally molded polyethylene for field adjust- ability to optimal installation depth.
